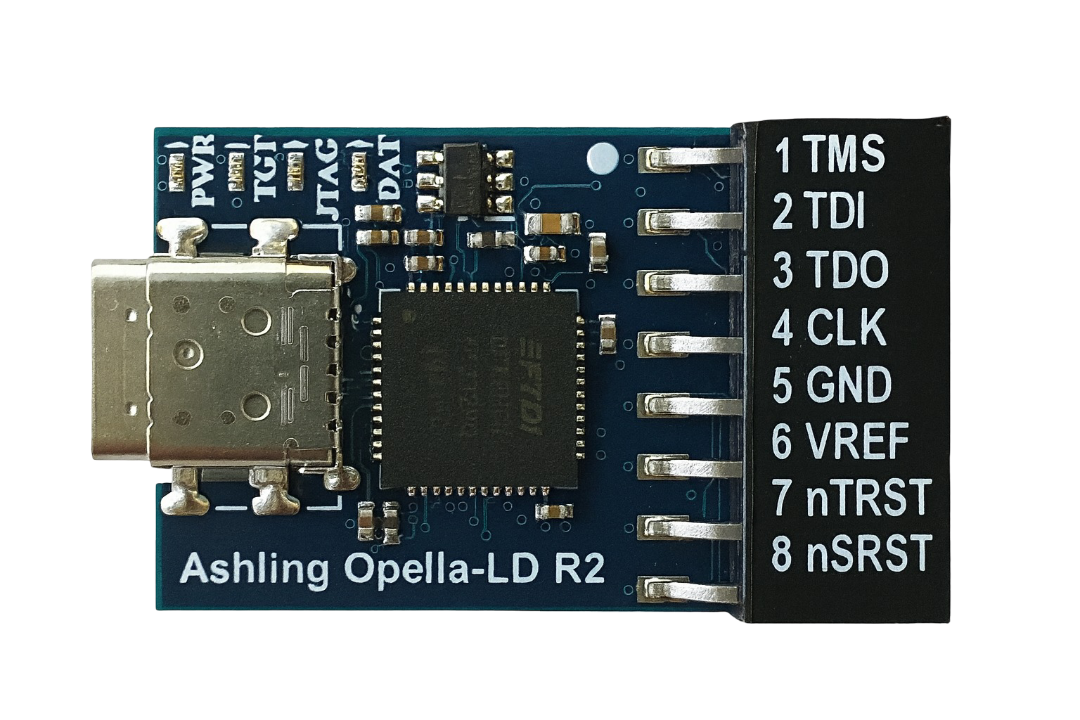

Opella-LD
Debug Probe
Opella-LD is Ashling’s low-cost, OpenOCD compliant, Debug Probe for embedded development with support for multiple target architectures including RISC-V and Arm powered systems. Opella-LD software debug support is provided via the open-source OpenOCD standard and provides fast code download to the target system with control and interrogation support for all core-processor and system resources including registers and memory. Opella-LD supports hardware debugging using Ashling’s RiscFree SDK or the GCC GDB debugger.
Features:
- Low-cost, compact form-factor.
- Works with RISC-V & Arm powered systems.
- Works under Windows & Linux with a USB Type-C host PC interface.
- Supports JTAG, cJTAG & CoreSight DAP & SWD debug interfaces with up to 30MHz data clock rates.
- Four LEDs to indicate Power, Target Present, JTAG or SWD mode & Data Transfer Activity.
- Supports & automatically adapts to target voltages between 0.9v to 5.0v.
- Supports JTAG TAP Reset (TRST) & System Reset (SRST).
- Dedicated Ashling support site with latest user documentation, drivers & OpenOCD configuration files for all target architectures.
| Product | Order Code |
|---|---|
| Opella-LD Debug Probe (comes with flying leads and 10-way 0.05” adapter for MIPI/CoreSight targets) | OPELLA-LD |
